通用颗粒表观质量自动检测仪
(树脂粒子黑点异色异形检测分析仪)
Opaque Pellet Process Inspector
Model QPPI 100
用途Application

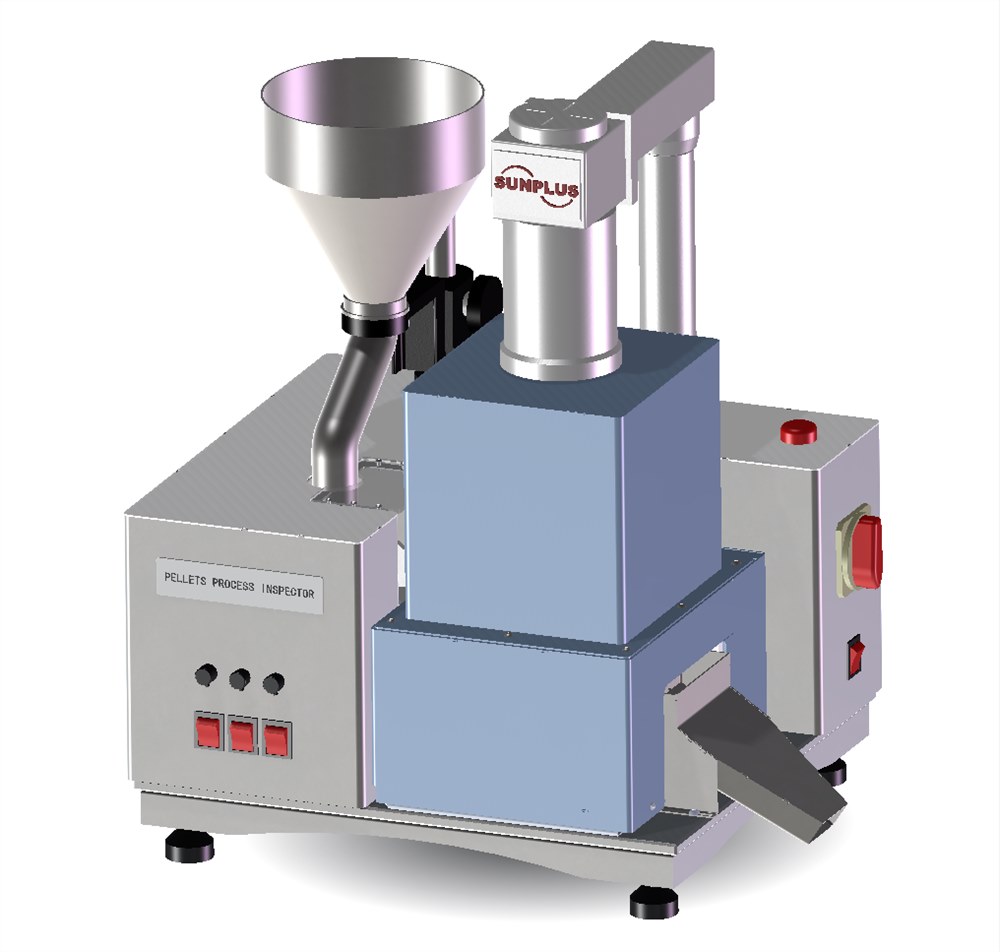

专为树脂通用颗粒的外观质量检测而推出的一款高效智能化自动检测仪器，它在自动送样中实现黑点、异色、异形等缺陷的自动检测。通用颗粒是指不透明的本色或彩色颗粒，其外形可以是圆形、椭圆形、方形、柱形，扁形等多种形态，是塑料树脂行业普遍生产的颗粒粒子。
聚合物树脂颗粒的纯度是其下游产品质量的重要保证，当前，行业内的常规做法是人工肉眼观测来检测杂质或异色异形等缺陷，因此，这带来高强度的人工成本、低效率、及漏检错检。QPPI 100型自动送样自动检测的技术优势，将改变这些传统的检测不足，并带来产品质量恒定一致的保障和进步。
异色和异形在一个平台中检测，整台仪器外形紧凑美观，极具技术优势。
This equipment is developed to inspect the black spot or other defect speckles for general resin or plastic pellets. It automatically inspect all blacks, color-off, or shape defects in a sample feeding process of materials. The general pellet is the opaque one that has appearance with color or even dark color, and has all kind of shape of circle, oval, square, columnar, oblate, etc. Purity of polymer resin pellet is significant guarantee for the quality of its downstream product.
At present, a common method in the industry to inspect all defects is carried out by naked eye of mankind which results in high cost of manpower, low efficiency, failure or false detections. Fortunately, the advantage of OPPI 100 will change these traditional disadvantage for inspection, and will absolutely bring the user with a consistent fine quality and progress of the products.
The integration in one inspection platform together with color-off and shape defect functions makes this equipment compact and beautiful, and is great of advantage in technology.
技术指标Specifications
1. 适用标准Applied standard: SH/T 1541.1-2019 or by request
2. 适检颗粒大小Applicable size of pellet： ≤ 15mm
3. 最小检测目标Min target size： 0.03mm
4. 检测精度Resolution：≤0.025mm
5. 检测元件Detection sensor：CCD with high resolution lens.
6. 检测元件数量Number of sensor: 1 CCD
7. 料斗容量Capacity of hopper： 3L
8. 检测料道宽度Feeding width: 可配置 configuration applied by request
9. 送检速度Feeding speed：可调Adjustable
10. 检测样品量Inspection Capability ： Max 300Kg/hr
11. 光源Illuminant: 24V/30W LED
12. 光亮度Luminance: 可调Adjustable
13. 供电电源Power supply：220V,50HZ
14. 外形尺寸Equipment dimension ：490mmⅹ445mmⅹ620mm
仪器功能特点Performance and Features
1. 动态检测颗粒，在自动送料中实现颗粒的自动检测。无需值守，自动完成检测。
Dynamically inspect the pellet during automatically feeding process.It operates and manages the process itself without duty guide.
2. 有效消除颗粒边沿的黑影对黑点识别的影响，提高了检测的准确性。
Effectively eliminate the black shadow from pellet border area to improve the accuracy of inspection.
3. 可检测颗粒的异形瑕疵，包括拖尾、包芯、开叉、玻纤、坍塌、连粒、大粒、小粒、絮状物等广泛的表观特征。
Capable of detection of shape defects with wide kind of appearance characteristic, including tails, slit, glass fire, collapse, sticky pellet, the oversize, the less normal granule, fibre texture, and so on.
4. 不仅提供一键检测功能，实现自动检测，提高了效率，还提供人工检查和复核功能，提高检测结果的有效性。
Provides functions not only with One-Key-Test, an automatic inspection function to increase efficiency, but also with a second double check function, a mannerly checking and modification function to improve effectiveness.
5. 检测到的缺陷被标注，并可在界面显示其大小和类别。
The defects detected are marked clearly and showed with size and classification.
6. 测量数据按要求进行分类统计并出示检测报告，检测报告包含瑕疵点的截图，报告的数据均自动储存在电脑的硬盘中，可以随时调阅。
The inspection report is analyzed by statistics and classification with imaging of defect. All data in report is automatically saved in database and can be reviewed any time.
7. 可拓展多规格颗粒检测，如彩色、白色、深色颗粒的异色异形检测。
This equipment can also extend to inspect the color-off or shape defect pellet for multiple kind of pellets, such as colorized, white, and dark color pellets.
8. 可拓展成检测透明颗粒、半透明颗粒和不透明颗粒综合功能的一体化检测仪器。
Also can be configured to detect transparent, semi-transparent and opaque pellet in an integration device
9. 模块化设计，方便检修和功能扩展，也很方便增加筛选功能。
Modular design makes it easy to maintain or repair and is also expediently to add sorting function in same device .
10. 检测台可以移动打开，方便检查、检修和清洁。
The inspection platform can be moved away from the working position for operation of device inspection, maintenance and cleanness.
