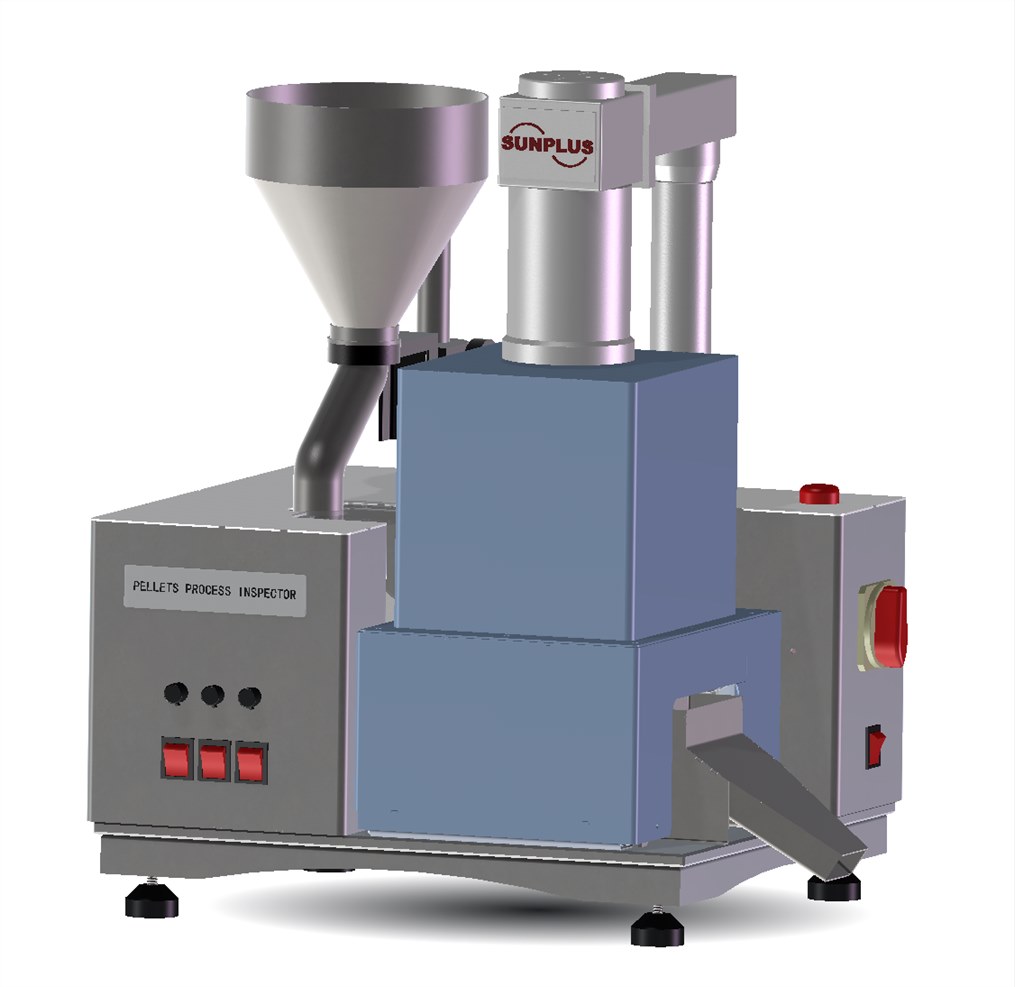

透明颗粒表观质量自动检测仪
(透明树脂粒子黑点异色异形检测分析仪)
Transparent Pellet Process Inspector
Model TPPI 100
用途Application
专为透明颗粒的外观质量检测而推出的一款智能化自动检测仪器，它在自动送样中实现黑点、异色、异形等瑕疵缺陷的自动检测。
基于SUNPLUS公司独特的创新技术，这台仪器可以有效排除光照阴影和颗粒中因不规则的颗粒质地造成的严重黑影斑点对检测结果的影响，从而准确地发现真实的杂质黑点或异色，从而让透明粒子可以变得更加纯粹清澈。
黑点、异色和异形在一个平台中检测，整台仪器外形紧凑美观，极具技术优势。
This equipment is developed to inspect in process, the black spot or other defect speckles specially for transparent pellet. It automatically inspect all blacks, color-off, or shape defects in a sample feeding process of materials. Based on the unique innovative technology of SUNPLUS, This equipment can assure a fine and accuracy inspection quality by effectively eliminating the light shadow of the pellet as well as the badly black spots inside of the transparent pellet because of the irregular shape or texture of it. So that it finds out the true impurity blacks or color-off defects then makes the transparent pellet much purer and with more clean quality.
The integration in one inspection platform together with the blacks, the color-off and shape defect functions makes this equipment compact and beautiful, and is great of advantage in technology.
技术指标Specifications
1. 适用标准Applied standard: SH/T 1541.1-2019 or by request
2. 适检颗粒大小Applicable size of pellet： ≤ 10mm
3. 最小检测目标Min target size： 0.03mm
4. 检测精度Resolution：≤0.025mm
5. 检测元件Detection sensor：CCD with high resolution lens.
6. 检测元件数量Number of sensor: 1 CCD
7. 料斗容量Capacity of hopper： 3L
8. 检测料道宽度Feeding width: 可配置configuration applied by request
9. 送检速度Feeding speed：可调Adjustable
10. 检测样品量Inspection Capability ： Max 300Kg/hr
11. 光源Illuminant: 24V/30W LED
12. 光亮度Luminance: 可调Adjustable
13. 供电电源Power supply：220V,50HZ
14. 外形尺寸Equipment dimension ：490mmⅹ445mmⅹ620mm
仪器功能特点Performance and Features
1. 动态检测透明颗粒，在自动送料中实现颗粒的自动检测。无需值守，自动完成检测。
Dynamically inspect the transparent pellet during feeding process. It operates and manages the process automatically without being on duty.
2. 有效消除颗粒边沿的黑影对黑点识别的影响，提高了检测的准确性。
Effectively eliminate the black shadow from pellet border area to improve the accuracy of inspection.
3. 有效消除透明颗粒中的光影黑斑对检测黑点的干扰和影响
Effectively eliminate the interference of the light black shadow accumulated from the irregular shape or texture inside of the pellet.
4. 可检测颗粒的异形瑕疵，包括拖尾、包芯、开叉、玻纤、坍塌、连粒、大粒、小粒、絮状物等广泛的表观特征。
Capable of detection of shape defects with wide kind of appearance characteristic, including tails, slit, glass fire, collapse, sticky pellet, the oversize, the less normal granule, fibre texture, and so on.
5. 不仅提供一键检测功能，实现自动检测，提高了效率，还提供人工检查和复核功能，提高检测结果的有效性。
Provides functions not only with One-Key-Test, an automatic inspection function to increase efficiency, but also with a second double check function, a mannerly checking and modification function to improve effectiveness.
6. 检测到的缺陷被标注，并可在界面显示其大小和类别。
The defects detected are marked clearly and showed with size and classification.
7. 测量数据按要求进行分类统计并出示检测报告，检测报告包含瑕疵点的截图，报告的数据均自动储存在电脑的硬盘中，可以随时调阅。
The inspection report is analyzed by statistics and classification with imaging of defect. All data in report is automatically saved in database and can be reviewed any time.
8. 可拓展多规格颗粒检测，如不透明颗粒、彩色、白色、深色颗粒的异色异形检测。
This equipment can also extend to inspect the color-off or shape defect pellet for multiple kind of pellets, such as opaque, colorized, white, and dark color pellets.
9. 可拓展成检测透明颗粒、半透明颗粒和不透明颗粒综合功能的一体化检测仪器。
Also can be configured to detect transparent, semi-transparent and opaque pellet in an integration device.
10. 模块化设计，方便检修和功能扩展，很方便增加筛选功能。
Modular design makes it easy to maintain or repair and is expediently to add sorting function in same device .
11. 检测台可以移动打开，方便检查、检修和清洁。
The inspection platform can be moved away from the working position for operation of device inspection, maintenance and cleanness.
